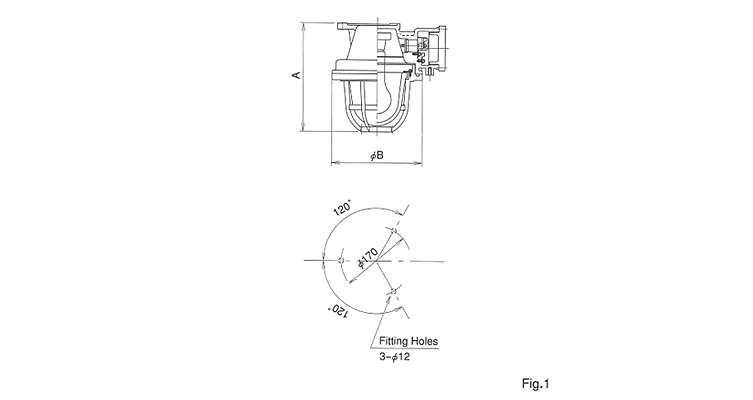

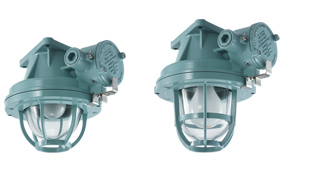

白熱防爆天井灯 Flame-proof Incandescent Ceiling Light
| Capacity | Type | Ex-Protection | Protection | Fig | Dimensions (mm) | Globe | LampHolder | Body | Finish | Weight (kg) |
|
| A | B | ||||||||||
| 100W (MAX) |
ELC-107 | ExdⅡCT4 | IP44 | 1 | 226 | 220 | EPC-107 | E-26/27 | Aluminium Alloy |
7.5BG7/2 | 6.2 |
| ELC-107S | IP67 | EPC-107S | |||||||||
| 200W (MAX) |
ELC-207 | ExdⅡBT3 | IP44 | 265 | 220 | EPC-207 | 6.5 | ||||
| ELC-207S | IP67 | EPC-207S | |||||||||
| ELC-207B | ExdⅡCT3 | IP67 | 265 | 220 | EPC-207B | Cast Bronze | 15 | ||||
* Key bolt type (for control switch) is available on request．
* Blind cap & open tool are available on request．
* Blind cap & open tool are available on request．

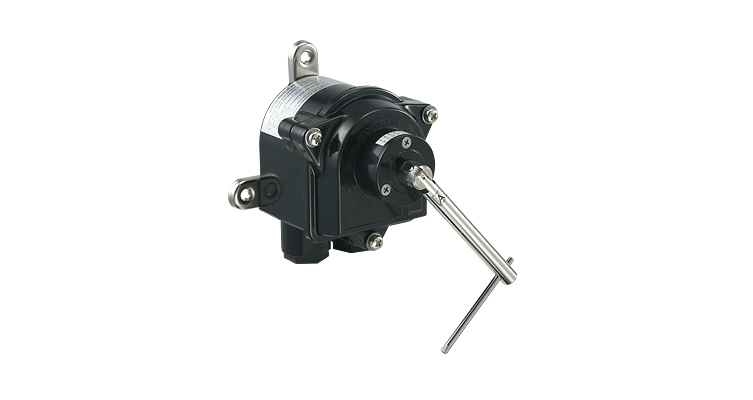

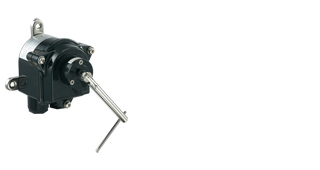

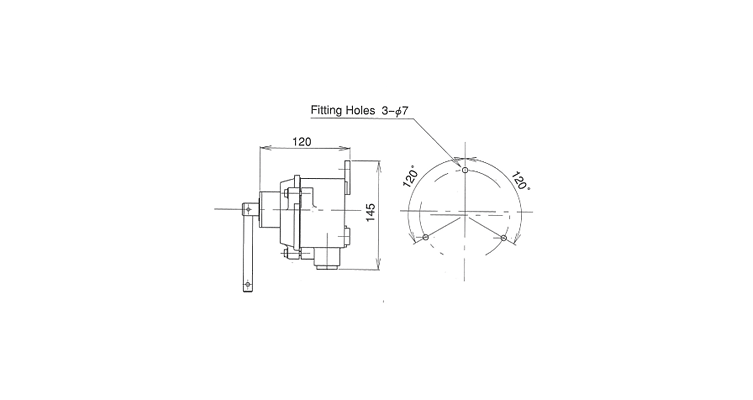

防爆灯用コントロールスイッチ Control Switch For Flame-Proof Light
| Rating | Type | Protection | Cover | Body | Weight (kg) | Finish |
| 100V.10A/ 250V.10A.2P |
IMZS300 | IP56 | Polycarbonate | F.R.P | 1.0 | Black |
* Use handle to open / close body. Handle can be taken out only at off position.

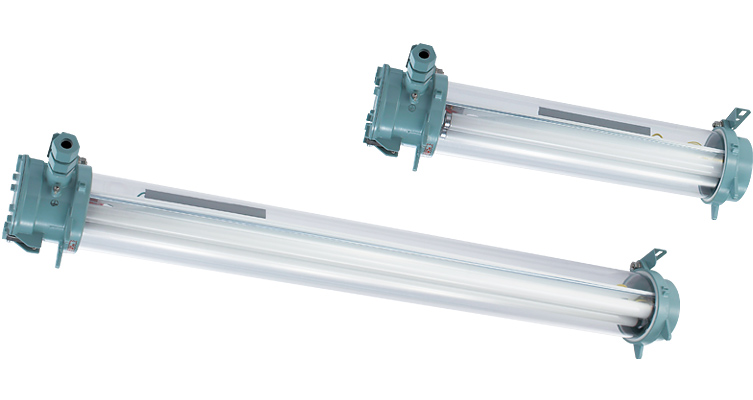

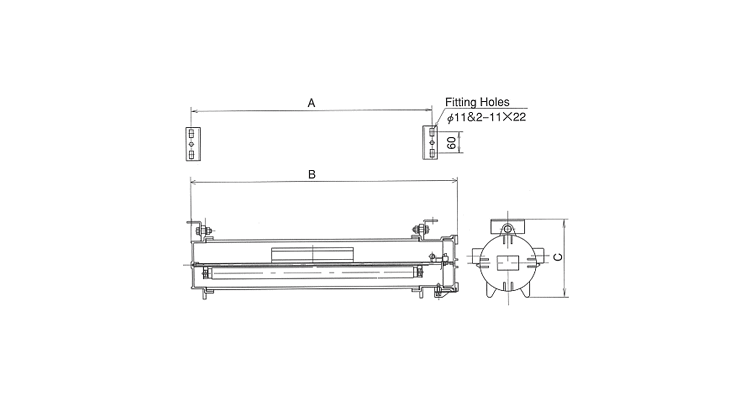

蛍光防爆天井灯 Flame-proof Fluorescent Ceiling Light
Diffuser： Polycarbonate pipe (clear)
Ballast： High power factor rapid start type
| Capacity | Type | Ex-Protection | Protection | Dimensions (mm) | Diffuser | LampHolder | Housing | Finish | Weight (kg) |
||
| A | B | C | |||||||||
| 20W×1 | EFB4R-201 | ExdⅡCT6 | IP67 | 680 | 753 | 218 | LS-955 | G-13 | Aluminium Alloy |
7.5BG7/2 | 7.5 |
| 20W×2 | EFB4R-202 | 8.0 | |||||||||
| 40W×1 | EFB4R-401 | ExdⅡBT6 | 1228 | 1361 | 218 | LS-956 | 11.0 | ||||
| 40W×2 | EFB4R-402 | 12.0 | |||||||||
| 20W×1 | EFB5R-201 | ExdⅡCT6 | 680 | 753 | 183 | LS-957 | 6.0 | ||||
* lnput voltage is 100,110 or 220V
* Key bolt type (for control switch) is available on request．
* Blind cap & open tool are available on request．
* Key bolt type (for control switch) is available on request．
* Blind cap & open tool are available on request．

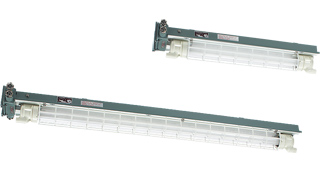

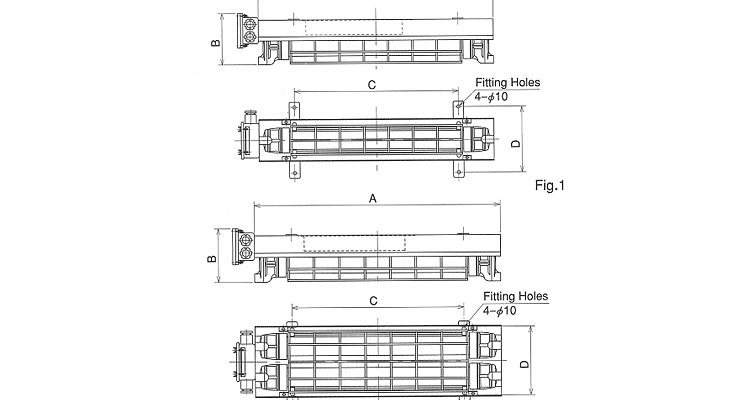

安全増防爆形蛍光灯 Increased Safety Type Fluorescent Light
Type： A = side terminal box
B = center terminal box (G×2)
B-4 = center terminal box (G×4)
| Capacity | Type | Ex-Protection | Protection | Fig | Dimensions (mm) | Diffuser | Housing | Finish | Weight (kg) |
|||
| A | B | C | D | |||||||||
| 20W×1 | ISF-215-A | eG4 | IP44 | 1 | 715 | 128 | 500 | 200 | LS-740 | Steel | 7.5BG7/2 | 6.8 |
| ISF-215-B | ||||||||||||
| ISF-215-B-4 | ||||||||||||
| 20W×2 | ISF-225-A | eG4 | 2 | 715 | 207 | 500 | 200 | 9.0 | ||||
| ISF-225-B | ||||||||||||
| ISF-225-B-4 | ||||||||||||
| 40W×1 | ISF-415-A | eG4 | 1 | 1350 | 128 | 750 | 200 | LS-741 | 10.2 | |||
| ISF-415-B | ||||||||||||
| ISF-415-B-4 | ||||||||||||
| 40W×2 | ISF-425-A | eG4 | 2 | 1350 | 207 | 750 | 200 | 12.8 | ||||
| ISF-425-B | ||||||||||||
| ISF-425-B-4 | ||||||||||||
* INCREASED SAFETY TYPE FLUORESCENT LIGHT is the recognized by the Class NK (NIPPON KAIJI KYOUKAI).
