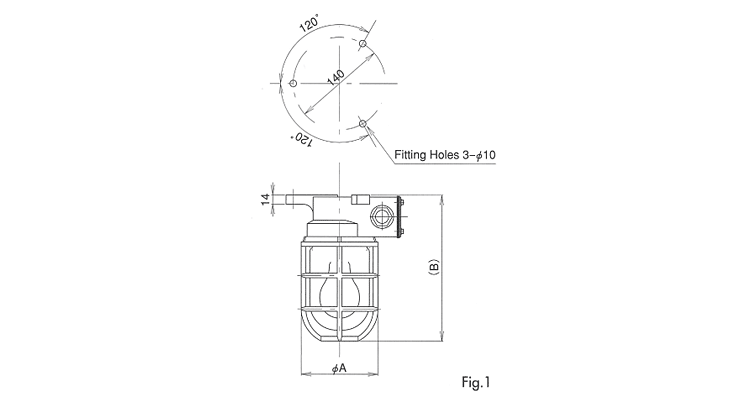

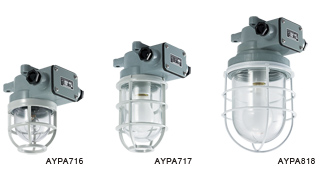

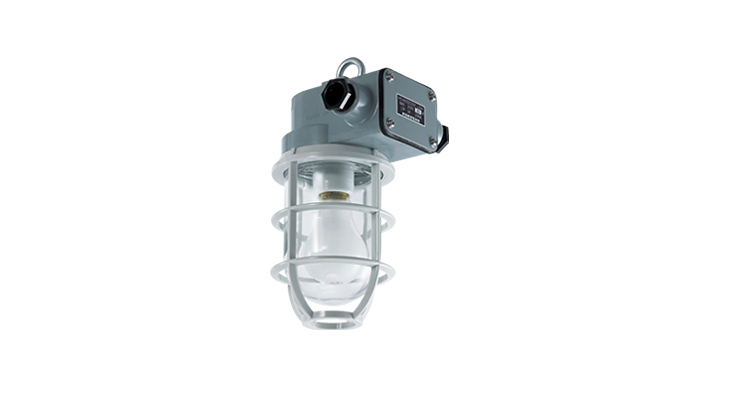

作業灯 Pendant Light
Fixed Type
Globe: 20W/S80AP(polycarbonate),60W/S90A(glass),100W/S120A(glass)
Guard: 20W/60W(polycarbonate),100W(brass)
| Capacity | Type | Protection | Fig | Dimensions (mm) |
Globe | Lamp Holder |
Body | Finish | Weight (kg) |
|
| A | B | |||||||||
| 20W | AYPA716 | IP56 | 1 | 106 | 163 | S80AP | B-15 | F.R.P | 7.5BG7/2 | 1.0 |
| 60W | AYPA717 | 116 | 225 | S90A | E-26/27 | 1.5 | ||||
| 100W | AYPA818 | IP55 | 164 | 280 | S120A | E-26/27 | 2.6 | |||
* Without guard is available on request．
* Screen (60W) is available on request．
* Screen (60W) is available on request．
Hanging Type
Globe： 20W/S80AP (polycarbonate), 60W/S90A (glass)
Guard： 20W/60W (polycarbonate)
| Capacity | Type | Protection | Fig | Dimensions (mm) |
Globe | Lamp Holder |
Body | Finish | Weight (kg) |
|
| A | B | |||||||||
| 20W | AYPA716-H | IP56 | 2 | 106 | 163 | S80AP | B-15 | F.R.P | 7.5BG7/2 | 1.0 |
| 60W | AYPA717-H | 116 | 225 | S90A | E-26/27 | 1.5 | ||||
* Without guard is available on request．
* Screen (60W) is available on request．
* Screen (60W) is available on request．

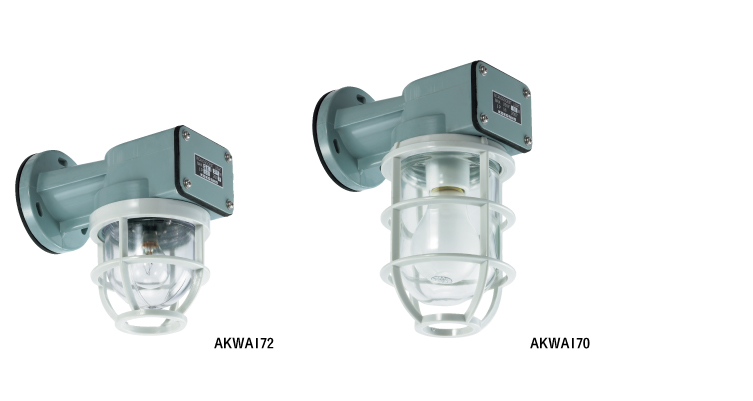

ブラケット灯 Bracket Light

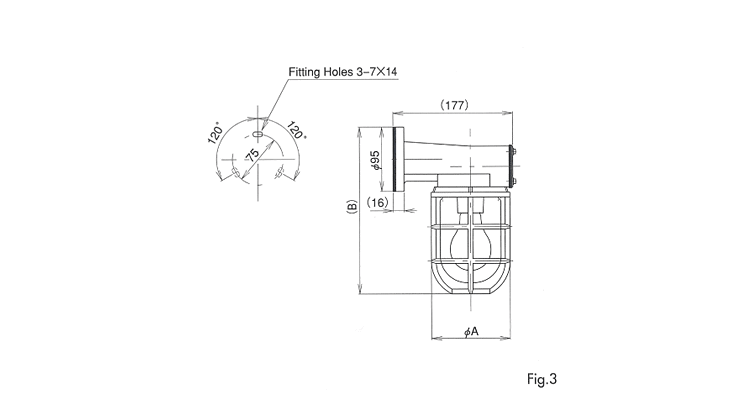

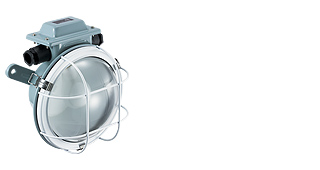

Bulkhead Type
Globe： S80AP (polycarbonate), S90A (glass)
Guard： 20W/60W (polycarbonate)
| Capacity | Type | Protection | Fig | Dimensions (mm) |
Globe | Lamp Holder |
Body | Finish | Weight (kg) |
|
| A | B | |||||||||
| 20W | AYWA172 | IP56 | 3 | 106 | 195 | S80AP | B-15 | F.R.P | 7.5BG7/2 | 1.0 |
| 60W | AYWA170 | 116 | 252 | S90A | E-26/27 | 1.5 | ||||
* Screen (60W) is available on request．
* Liner is available on request．
* Liner is available on request．

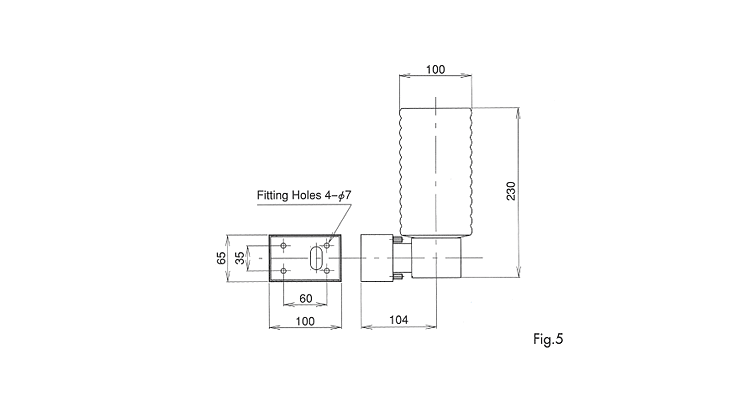

Decorative Type
| Capacity | Type | Protection | Fig | Globe | Lamp Holder |
Body | Finish | Weight (kg) |
| 60W×1 | AMW7260 | IP20 | 5 | LS-654 | E-26/27 | Brass | White Bonze |
1.2 |
| 60W×2 | AMW7210 | - | 2.8 |

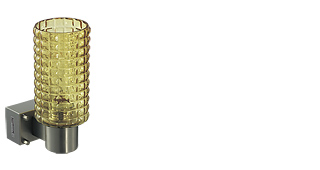

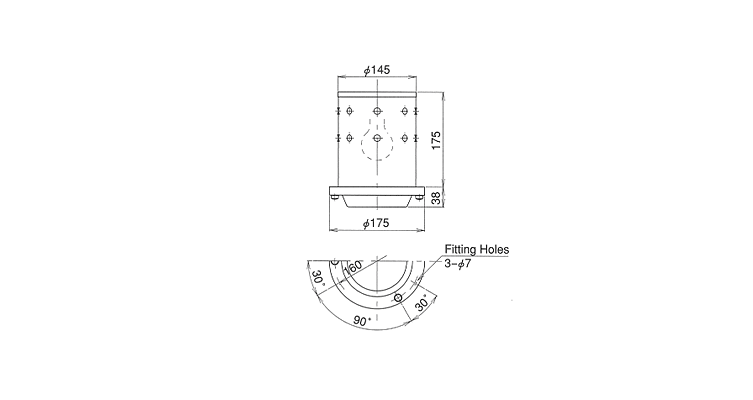

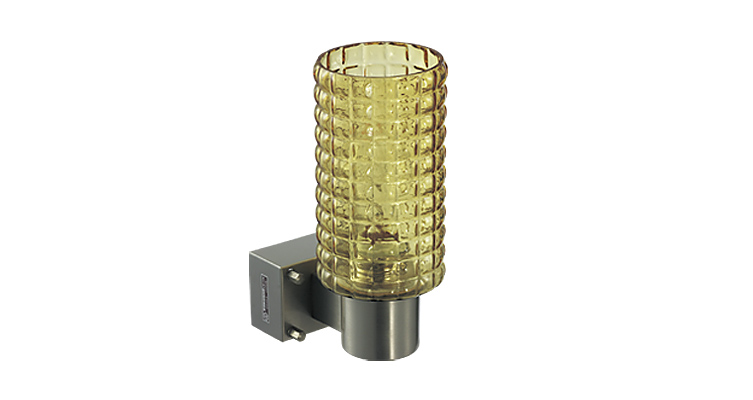

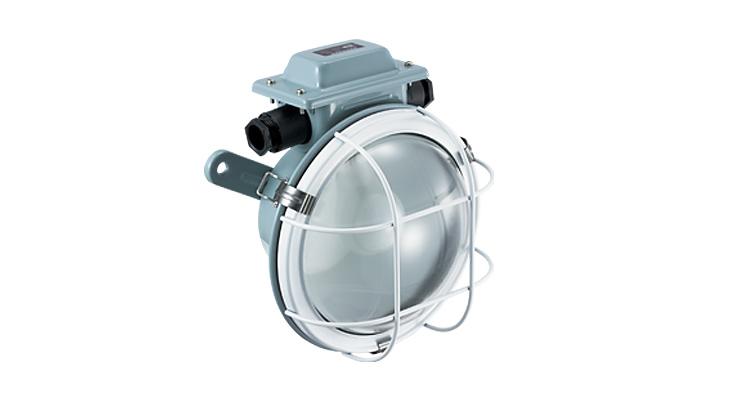

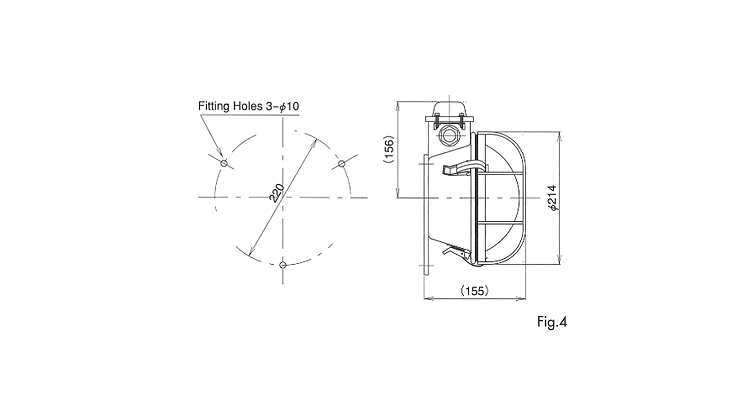

壁付灯 Wall Light
| Capacity | Type | Protection | Fig | Globe (glass) |
Lamp Holder |
Body | Finish | Weight (kg) |
| 60W | AMW7260 | IP56 | 4 | FA5-175 | E-26/27 | Stainless Steel |
7.5BG7/2 | 2.2 |
| 100W | AMW7210 | 2.5 |

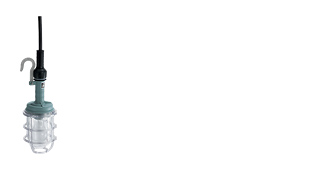

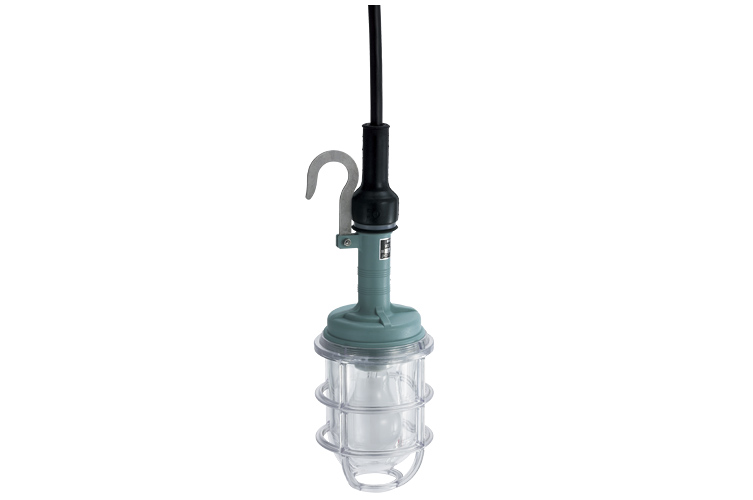

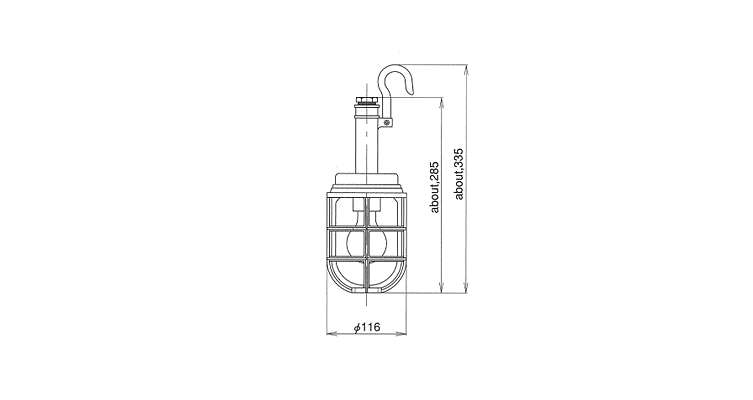

手提げ灯 Hand Lamp
| Capacity | Type | Protection | Globe (glass) |
Lamp Holder |
Body | Finish | Weight (kg) |
| 60W | AXH2400 | IP55 | S90A | E-26/27 | F.R.P | 7.5BG7/2 | 0.68 |

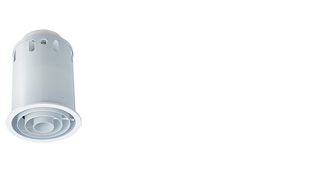

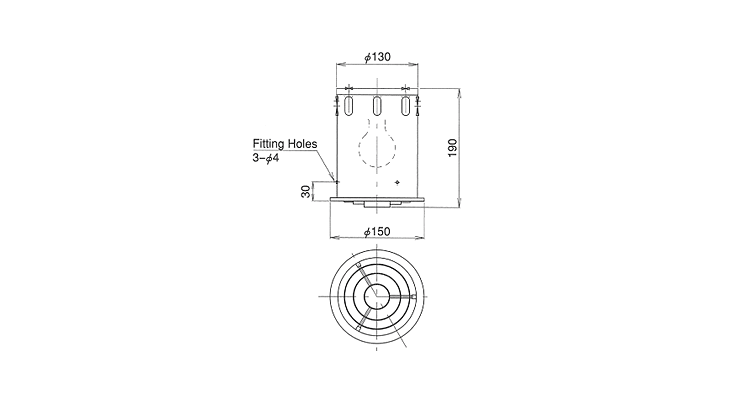

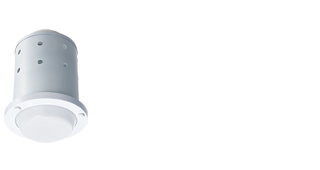

ダウンライト Down Light
Down Light
ダウンライト
| Capacity | Type | Protection | Globe (Plastic) |
Lamp Holder |
Body | Finish | Weight (kg) |
| 60W | AZO0174 | IP20 | LS-633 (Milky) |
E-26/27 | Steel | N-9.5 | 1.0 |
* Globe： Red color is available on request．(LS-633R)

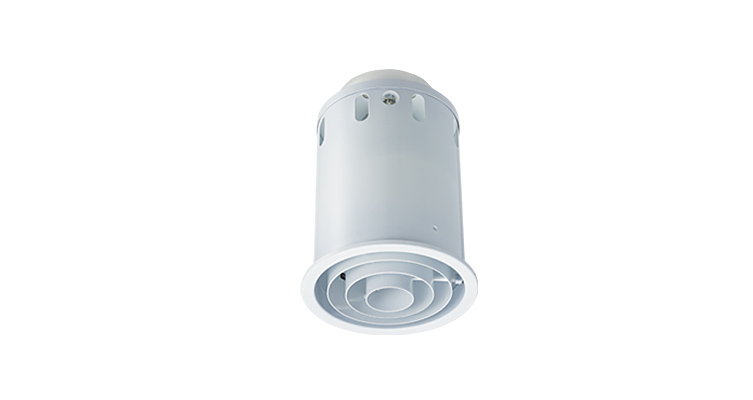

Down Light With Louver
ダウンライトルーバー付
| Capacity | Type | Protection | Lamp Holder |
Body | Louver | Finish | Weight (kg) |
| 60W | AMO6100 | IP20 | E-26/27 | Steel | Steel | N-9.5 | 1.0 |

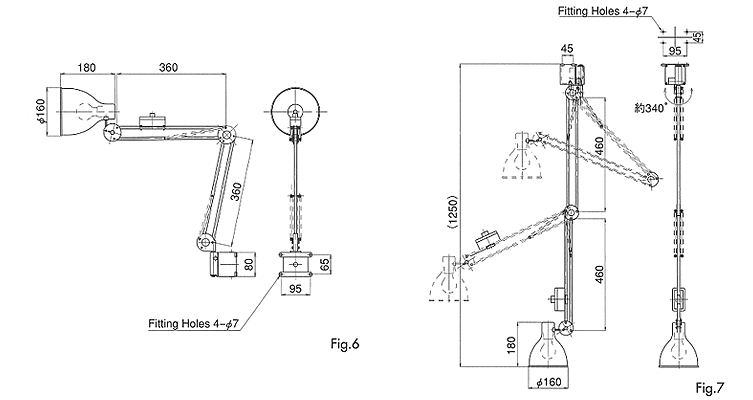

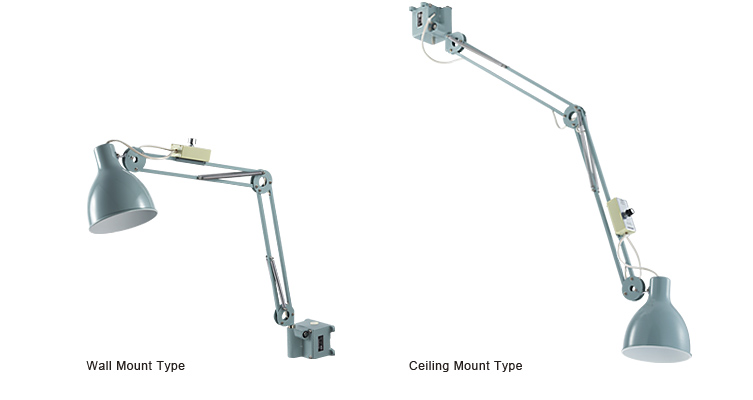

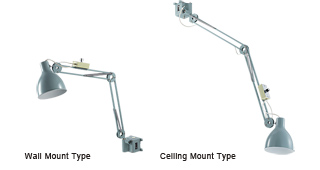

海図台灯 Chart Table Light
| Capacity | Type | Protection | Fig | Switch | Dimmer Switch |
Lamp Holder |
Body | Finish | Weight (kg) |
|
| Wall Mount Type |
60W | AZK0190-S | IP20 | 6 | ○ | - | E-26/27 | Steel | 7.5BG7/2 | 2.7 |
| AZK0190-DS | - | ○ | ||||||||
| Ceiling Mount Type |
AZK0200-S | 7 | ○ | - | 3.1 | |||||
| AZK0200-DS | - | ○ | ||||||||
| Desk Mount Type |
AZK0191-S | - | ○ | - | 2.9 | |||||
| AZK0191-DS | - | ○ |
* Red filter is available on request．
